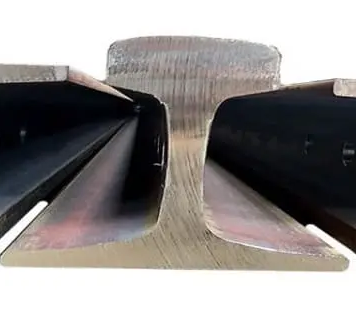

136RE rail, a very popular section of rail, is a heavy rail mainly used in mining tracks. It is produced according to the 136lb rail standard set by AREMA (American Railway Engineering And Maintenance Of Way Association). If you are looking for a lighter section of rail, 115RE rail is recommended.
136RE rail, a very popular section of rail, is a heavy rail mainly used in mining tracks. It is produced according to the 136lb rail standard set by AREMA (American Railway Engineering And Maintenance Of Way Association). If you are looking for a lighter section of rail, 115RE rail is recommended.
Due to the high grade of hardness, strength, and wear resistance, 136re rail is an optimal choice for heavy haul lines. It is widely used in the American market which has large demands of heavy axle load and long operating mileage.
TXD maintains a large inventory of 136RE rail. We also provide other types of American standard rails of various sizes such as 115re rail.
TXD has over 60 years of experience manufacturing and supplying railroad tracks and other track materials. Don’t hesitate to ask for the drawing and price of the product
| Rail type | Head mm | Height mm | Base mm | Web mm | Weight Kg/m | material | length |
|---|---|---|---|---|---|---|---|
| 136RE | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 | 900A/1100 | 12-25 |
| Rail Type: | 136 LB RAIL(TR68) |
|---|---|
| Nominal Weight(lbs/yd) | 136 |
| Standard Length | 39′, 80′ |
| Standard Drilling: | 3-1/2”×6” or 3-1/2”×6”×6” with 1-1/4” dia. holes |
| Rail Joint Length: | 24” or 36” |
| Rail Joint Weight: | 4-hole joint: 70 lbs/pr with hardware: 79 lbs/pr 6-hole joint: 117 lbs/pr with hardware: 130 lbs/pr |
| Rail Bolt: | 1”×6” |
Why choose TXD
Complete supply of railway products including railroad rails and other track materials.
World-renowned for its expertise in providing top-ranking services.
Sufficient inventory for railroad tracks and rail fasteners of all standards.
The factory price saves your investment.
Fast delivery near the port.
